Flat | Fold Joinery

Written by on . Posted in Design + Fabrication. Leave a Comment

IMG_20220520_165427_364

Flat | Fold Joinery

grasshopper, rhino, mild steel

status : on-going

Grasshopper, Rhino, Mild Steel

Project Overview
Flat | Fold Joinery is an exploration of hybrid timber–steel construction through a system of custom-fabricated steel connectors designed to assemble timber frameworks with precision, efficiency, and expressive clarity. The project introduces a family of bracket typologies that enhance structural integrity while simultaneously celebrating the aesthetics of exposed joinery. Balancing industrial pragmatism with crafted minimalism, the system proposes a new kit-of-parts approach for adaptable, prefabricated structures.

Design Concept
The joinery system rethinks traditional connections between timber members, externalizing the fastening process rather than concealing it. Unlike mortise and tenon or dowel joints, the steel brackets openly articulate the act of assembly, transforming fasteners and folded plates into a visible design language. The result is both structural and aesthetic: a disciplined rhythm of hex bolts, folded geometries, and steel-to-wood interfaces that underscores the precision of fabrication.

PXL_20220520_193951822.MP
PXL_20220520_200250266
PXL_20220520_200233989
PXL_20220521_170921019
PXL_20220521_130010327
PXL_20220510_160817470
PXL_20220510_160801548
IMG_20220520_165427_364

Parametric Modeling and Fabrication Logic
Developed in Rhino and Grasshopper, each bracket originates from a parametric definition capable of adjusting to different angles, member sizes, and material thicknesses. The workflow integrates design and fabrication seamlessly, with output directly formatted for CNC plasma cutting. Components were cut from flat steel sheets using optimized nesting strategies, then hand-bent and drilled as required. This fabrication sequence respects the efficiencies of 2D sheet material while leveraging the performative strength of folded geometry.

Assembly System
Each bracket is designed to integrate seamlessly with dimensional wood members, locking them together at exact angles with minimal tools. Standard hex bolts and locking nuts, recessed into the folded plate surfaces, achieve both strength and visual order. The assembly logic emphasizes clarity and repeatability: components can be flat-packed, transported, and reassembled on-site without sacrificing structural precision. This portability and scalability extend the system’s application from small-scale furniture to full architectural frameworks.

Material Expression
The system foregrounds both the tactility of timber and the durability of steel. Exposed grain meets folded plate in deliberate contrast, while the recessed fasteners highlight the regularity and rigor of the assembly. The joinery reads as both connective tissue and ornament — not hidden beneath the surface, but celebrated as part of the spatial and structural articulation of the framework.

Conclusion
Flat | Fold Joinery demonstrates how digital design and fabrication can redefine one of architecture’s most fundamental acts: connection. By combining parametric adaptability with material efficiency, the system offers a repeatable, scalable, and transportable construction logic. More than fastening, the project positions joinery as an architectural language in its own right — precise, expressive, and deeply tied to both craft and contemporary fabrication practices.

Process

PXL_20220502_174904361
PXL_20220502_182143694
PXL_20220502_182149946
PXL_20220502_182159062
PXL_20220510_164606065
PXL_20220510_164600000
PXL_20220510_164321375
PXL_20220510_164317169
PXL_20220428_035453606
PXL_20220428_035510611
PXL_20220505_042556532.MP
PXL_20220505_042622644
PXL_20220428_035220800
PXL_20220428_035437978

More Work

Architecture

Wichita Mobile Clinic

anadarko, oklahoma
SA Architects

cranston, rhode island
OKC Greenhouse

oklahoma city, oklahoma
Pawtucket Day Nursery

pawtucket, rhode island
Meeting Street Center for Excellence

providence, rhode island
Norterly Island Nature Center

Chicago, Illinois
National Institute of Flamenco

old town plaza, santa fe, new mexico
Corrales Comunity Pathway + Pedestrian Park

corrales, new mexico
CRCUIT

albuquerque, new mexico
The Construction of Art

providence, rhode island
Santa Fe Univeristy School of Fine Arts

Santa Fe, New Mexico

Design + Fabrication

Flatpack Foldable Structural Connections

rhino, grasshopper, mild steel
Renegades

Fred Jones Jr Museum of Art
Surface Flux

python, c#, grasshopper, pla, wood, steel
Carbon Fiber Connections

grasshopper, rhino, pla, carbon fiber
Acoustic Diffusion Panel

grasshopper, rhino, cnc, rigid insulation
Hyperbolic Bending

grasshopper, rhino, laser cut acrylic, bristol board
Filtration : Infiltration

python, grasshopper, rhino, 3d printing
Recursive Paneling

laser cut mylar
Sweet Crude

python, c#, grasshopper, wood, plasti-dip, carbon, gelatin
Ruling Lines

laser cut cell cast acrylic, stainless steel braided wire
Volumetric Aggregations

processing, grasshopper, rhino, cast acrylic, black walnut, hickory
Cellulose Bookcase

pine, black walnut, compressed wood fiber board, stain
Asher Chair

rhino, pla, birch plywood
Andraditic Mass

arduino, firefly, rhino, 3d printed pla, baltic birch plywood
Cholla

grasshopper, rhino, black walnut
Folding Attractors

grasshopper. rhino, white museum board
Grain Chair

rhino, cnc milled birch plywood
Tracking Parallelograms

grasshopper, rhino, hickory
Infiltration Table

processing, spalted birch plywood, poplar, enamel, lacquer

Art + Code

Prairie Fire

acrylic, ink, plywood
Surface Flux

python, c#, grasshopper, pla, wood, steel
Dixieland Death Cult

acrylic, plywood
Approximation of a Generation

private tremendous
Elemental Worlds

science museum oklahoma
Gonzo Cubes

solidity, html, css, javascript, illustrator
A Line of Force

arduino, grasshopper, firefly, java, plywood
The Drift

html, css, javascript
Gear Institute

illustrator, photoshop, php, css, html
Prism

unity, c#, spine2d, illustrator
Squall

petroglyphs national monument, albuquerque, new mexico
Galileo’s World Interactive

c#, unity3d, illustrator, photoshop
Steel + Light

convergence arts festival masterworks project, providence, rhode island
The God of Skiing

book design

© [wpsos_year] Ken Marold USA, Inc. All rights reserved.

Renegades: Bruce Goff and the American School of Architecture

Written by on . Posted in Design + Fabrication. Leave a Comment

Renegades: Bruce Goff and the American School of Architecture

Fred Jones Jr. Museum of Art, Norman, OK
Exhibited: Jan 23 – Apr 5, 2020

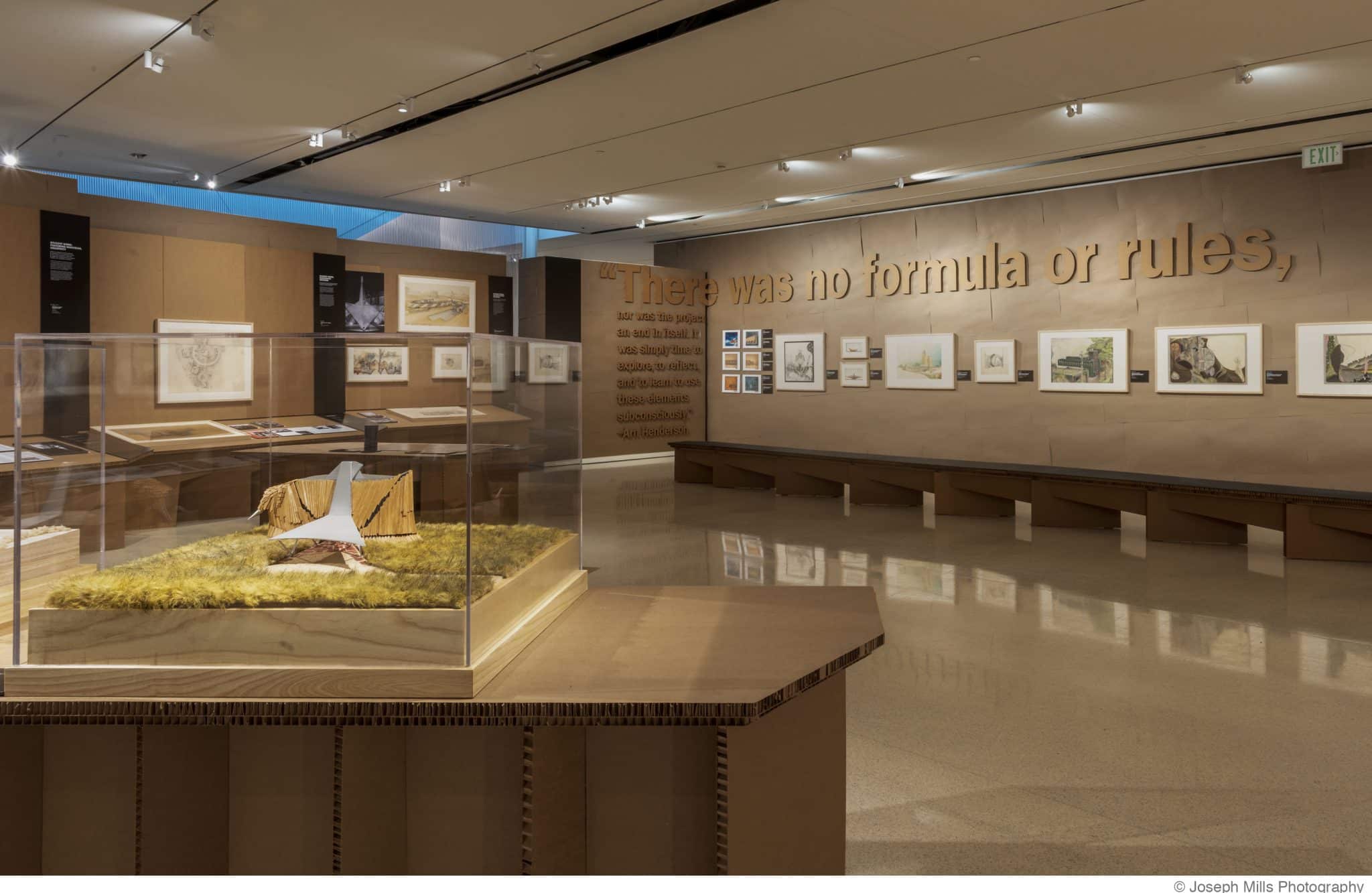

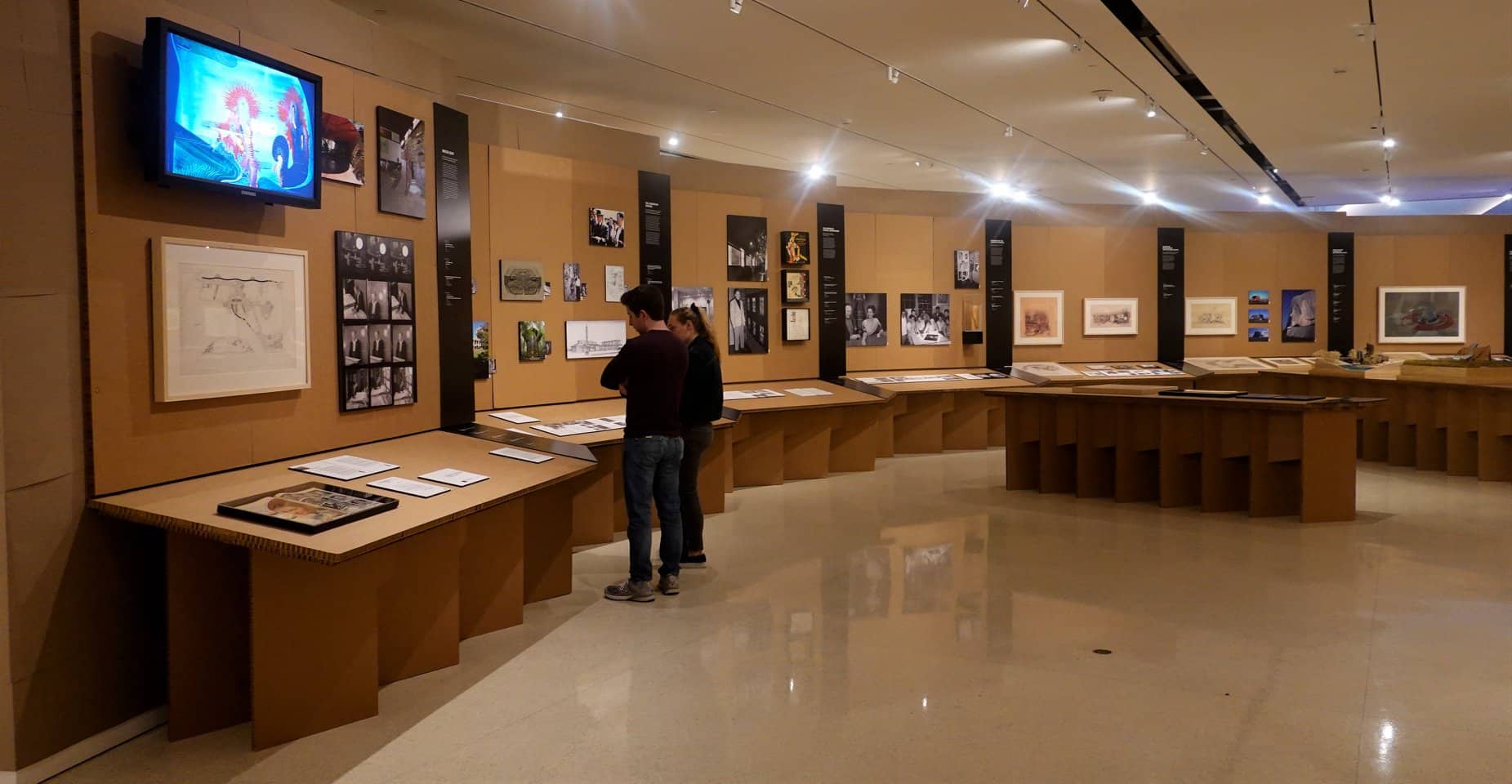

Renegades: Bruce Goff and the American School of Architecture was a landmark exhibition at the Fred Jones Jr. Museum of Art celebrating the visionary legacy of Bruce Goff and the experimental pedagogy that defined the American School. The exhibition brought together drawings, models, and archival material that revealed Goff’s enduring influence on design education rooted in creativity, material innovation, and individual expression.

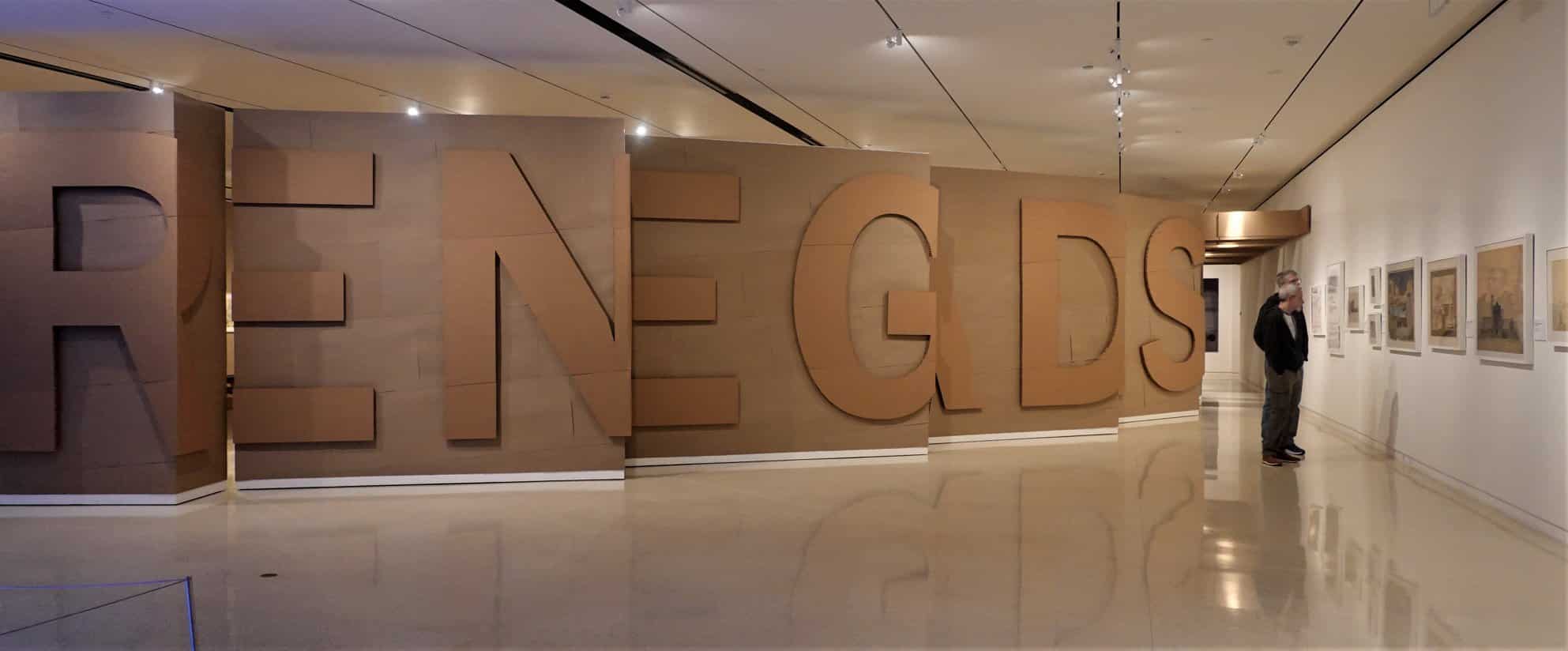

As principal fabricator, the work focused on translating exhibition designer Michael Hoffner’s curatorial drawings into physical form through hand fabrication. This included nine eight-foot-tall typographic totems, nine nine-foot-long freestanding workstations, a thirty-two-foot-long bench, three architectural drawing display tables, one virtual reality station, and four stools. All components were hand-fabricated from honeycomb cardboard and wood, using custom joinery and material strategies developed through extensive research into modular assembly and lightweight structural performance. The resulting suite of furniture and display elements embodied the American School’s improvisational ethos, where material curiosity and experimentation serve as forms of architectural inquiry.

Exhibition and Fabrication

The fabrication process became an act of architectural translation, bridging the gap between Hoffner’s design intent and the physical constraints of the exhibition material. Each element was hand-cut, laminated, and assembled in the Gibbs College of Architecture’s fabrication studios, transforming simple materials into refined museum-grade installations. The workflow balanced precision and immediacy, relying on analog tools, physical mockups, and iterative testing to resolve structural stability, assembly logic, and visual consistency.

Rather than hiding process, the exhibition celebrated it. Exposed joints, seams, and edges revealed the construction logic and conveyed the spirit of Goff’s pedagogy: that making is itself a form of discovery. The fabricated installations were both display infrastructure and spatial instrument, guiding visitors through the gallery while performing as sculptural artifacts in their own right.

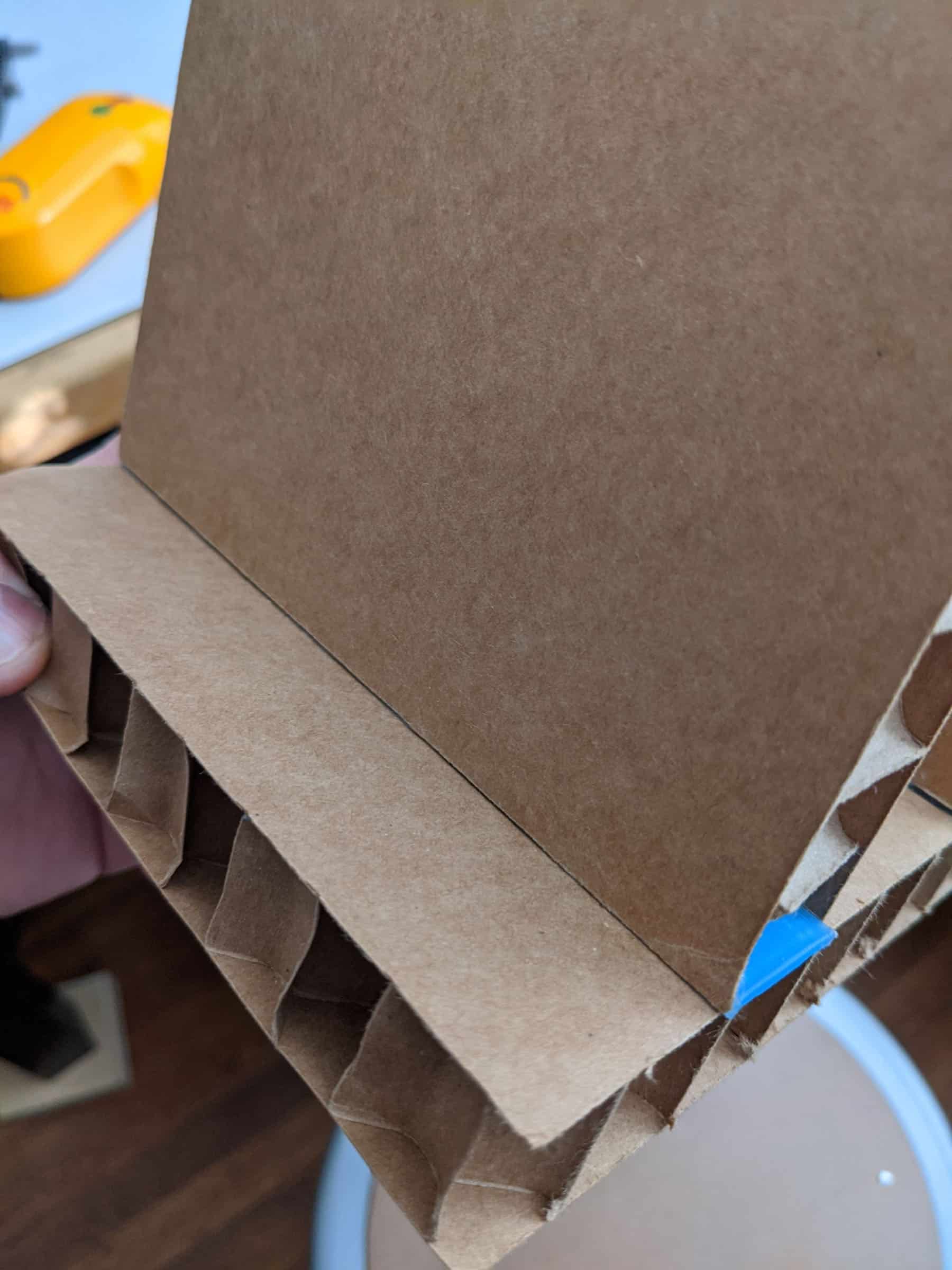

Material Research and Honeycomb Edge Insert Development

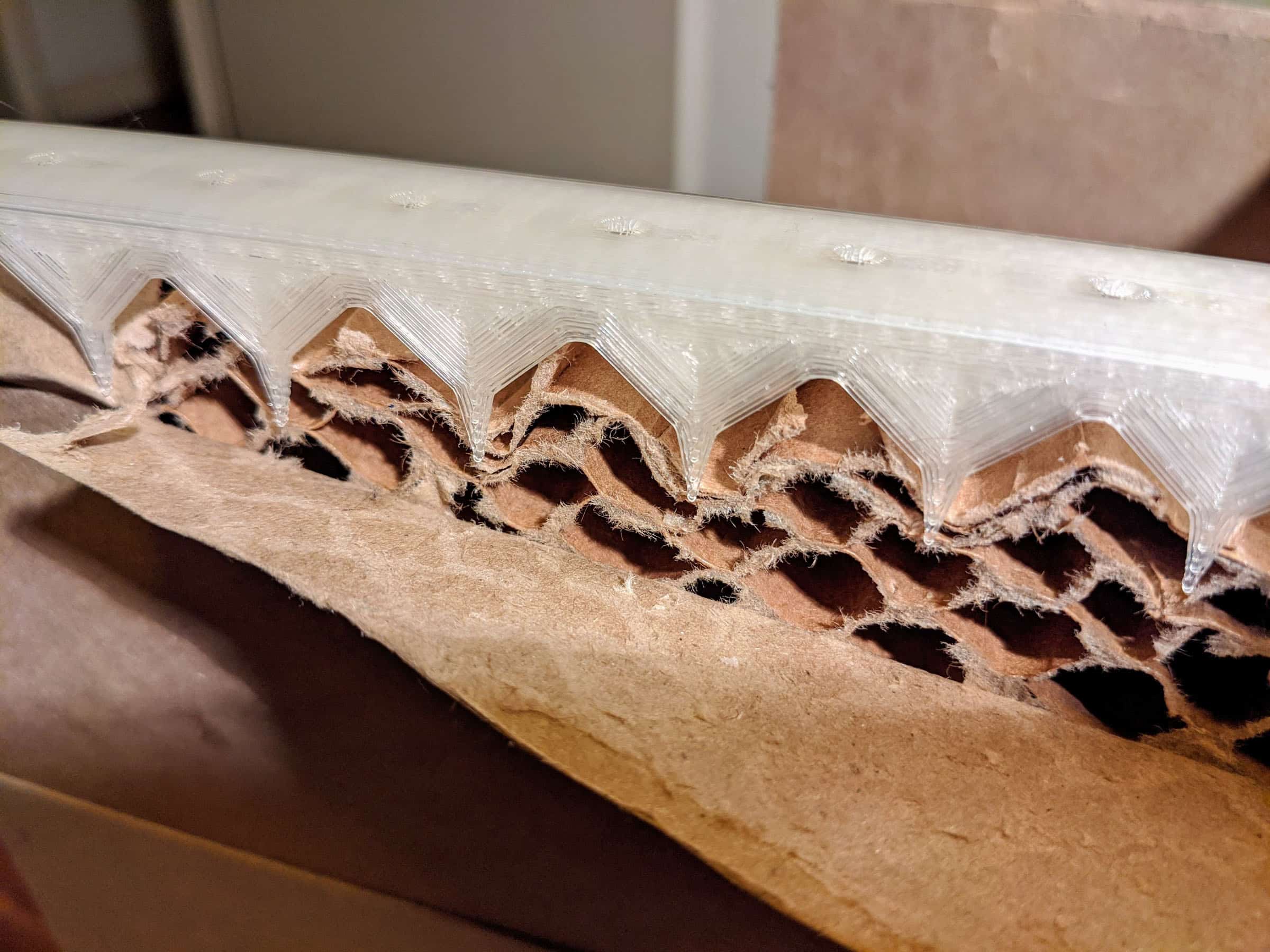

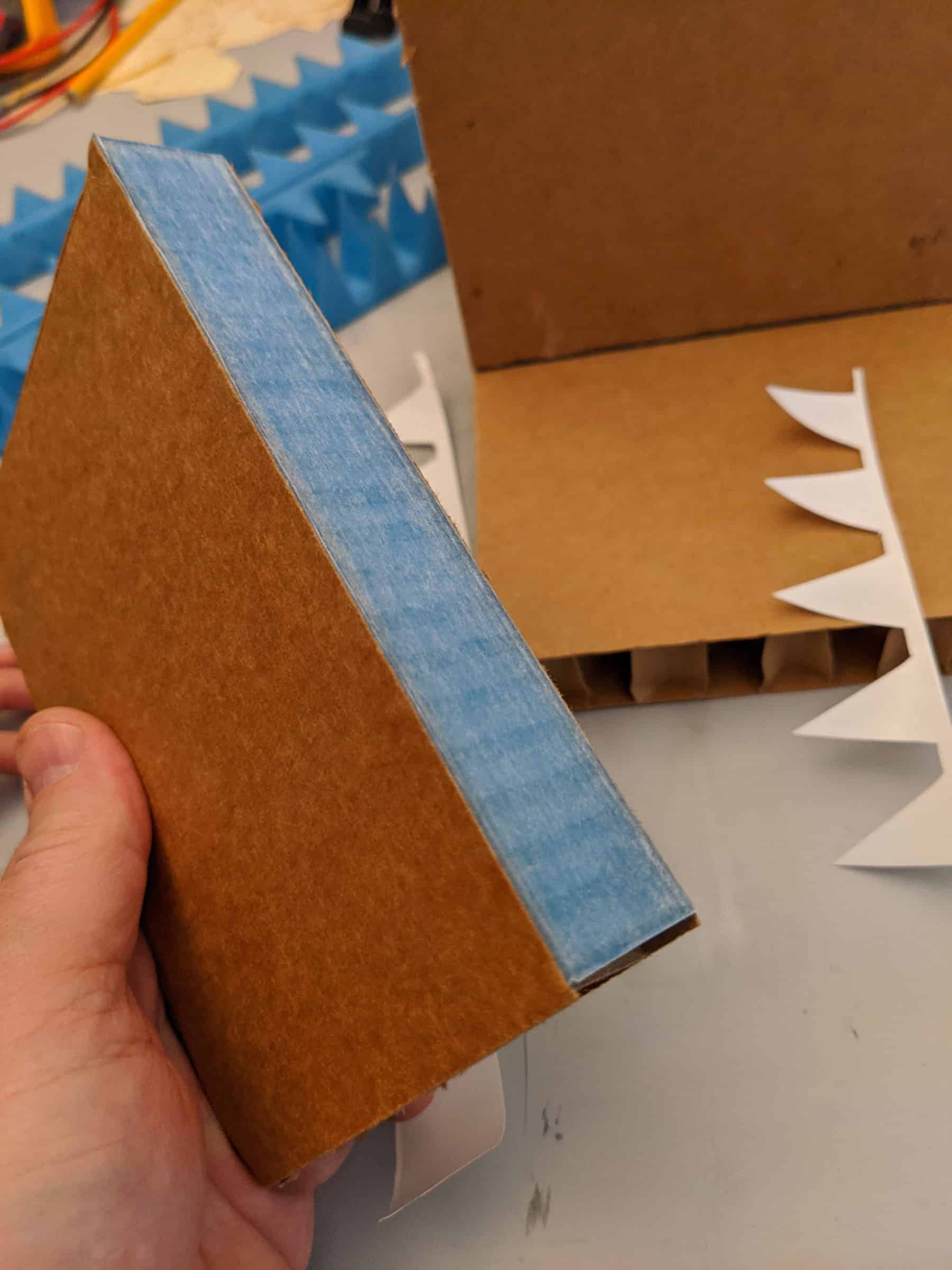

The structural limitations of honeycomb cardboard led to a focused material investigation that advanced into funded research and a provisional patent. Using Rhino, Grasshopper, and 3D printing, a digitally parameterized Honeycomb Cardboard Edge Insert was developed to reinforce and stabilize the material’s vulnerable edges. This computationally designed component addressed issues of crushing and delamination by bridging the internal cells of the cardboard core with interlocking ribbed geometries.

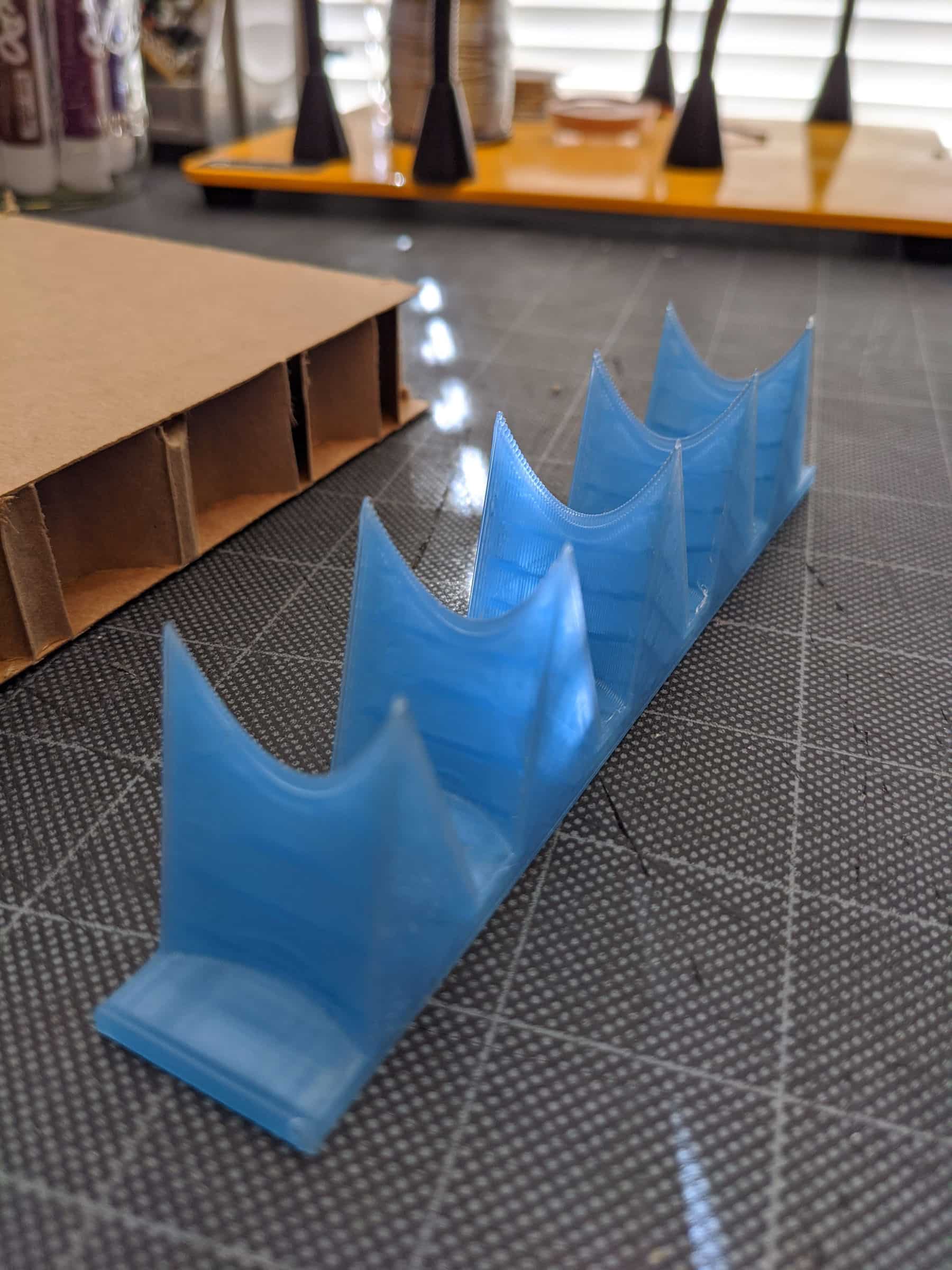

Each insert was algorithmically generated to adapt to varying panel geometries, creating seamless transitions between edge-to-edge and edge-to-face connections. 3D-printed from PLA, the inserts friction-fit within the cardboard structure, distributing loads evenly while maintaining the lightweight and recyclable nature of the material. This work culminated in the research grant Integral Connections for Structural Applications of Honeycomb Cardboard and the U.S. Provisional Patent (No. 62/954,239).

The Honeycomb Edge Insert transformed honeycomb cardboard from a fragile display substrate into a high-performance structural material. More broadly, it exemplified how computational design and additive manufacturing can extend the life of sustainable materials through digital precision, situating fabrication research within the experimental tradition of the American School—where craft, curiosity, and technological ingenuity converge.

Computational Workflow and Digital Production

Although fabrication was performed entirely by hand, the process was informed by digital workflows that established geometric accuracy and coordination across hundreds of unique parts. Each component was modeled digitally, translated into full-scale cutting templates, and refined through analog methods of assembly and testing. This combination of computational design logic and manual craftsmanship exemplified the exhibition’s central theme: the intersection of intuition and precision in creative production.

By merging digital and tactile methodologies, the fabrication process embodied a hybrid model of production that echoes Goff’s experimental philosophy. It demonstrated how computation can serve as a conceptual framework, guiding human craft rather than replacing it, and reaffirmed that architectural intelligence resides equally in the process of making as in the final artifact.

Fabrication Seminar: Topographical Ecotones

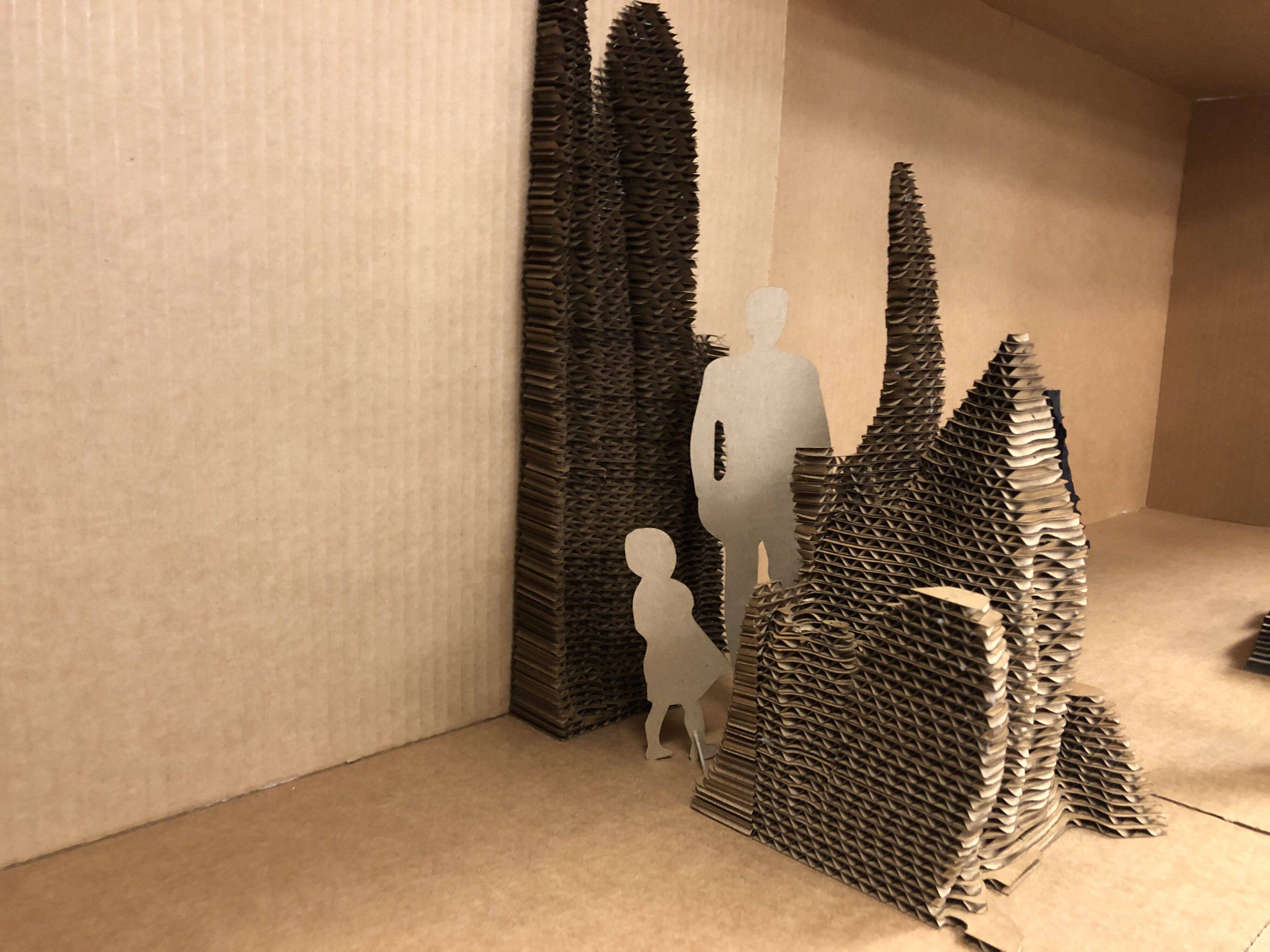

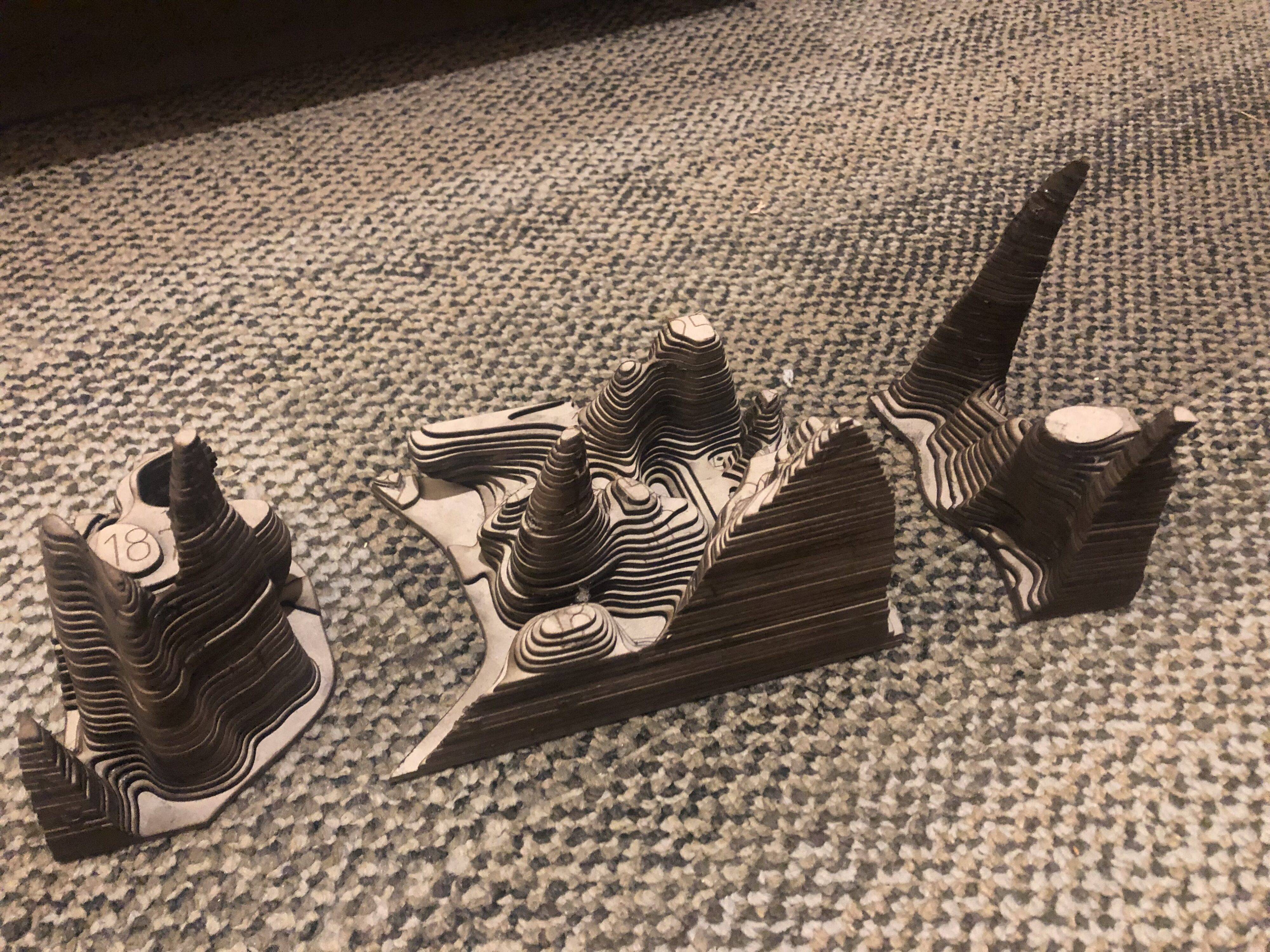

Developed as an academic extension of the Renegades exhibition, the Topographical Ecotones Fabrication Seminar translated the exhibition’s material research into a pedagogical framework. The seminar introduced students to Rhino, Grasshopper, and CNC fabrication as tools for investigating transitional spatial and ecological conditions. Using the concept of the ecotone—a threshold where two or more systems overlap—students designed and fabricated terrains that explored ideas of intersection, adjacency, and transformation.

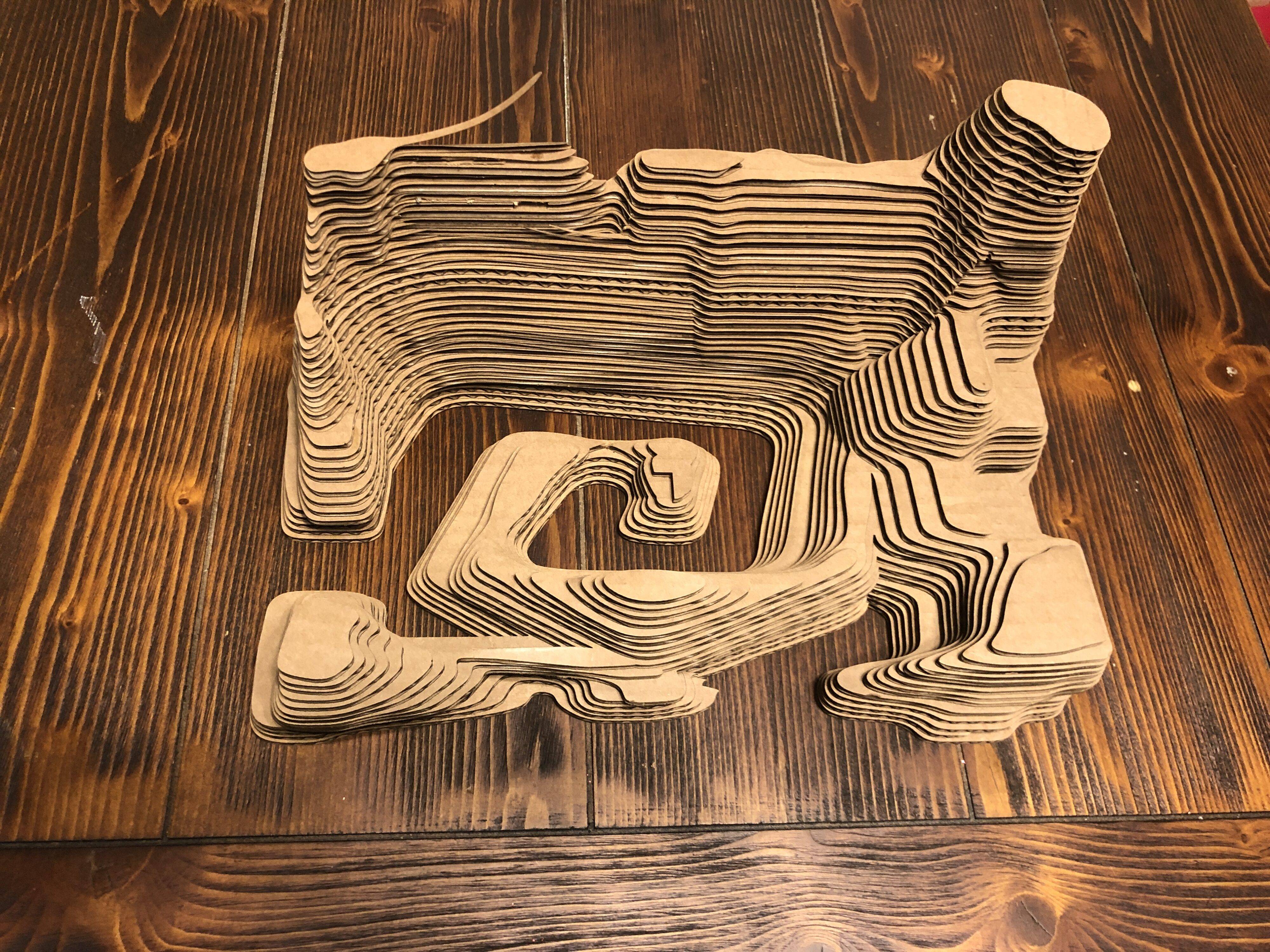

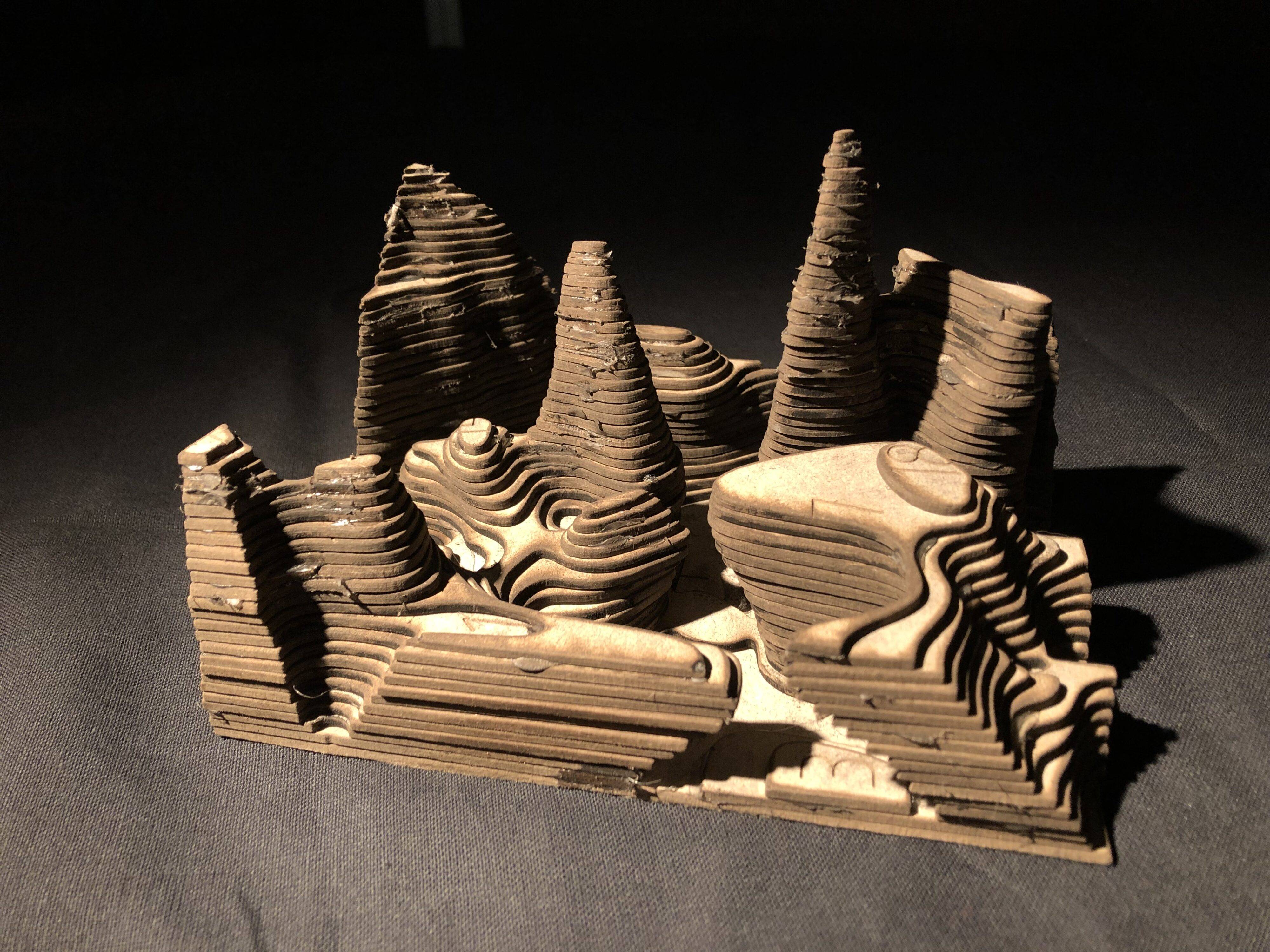

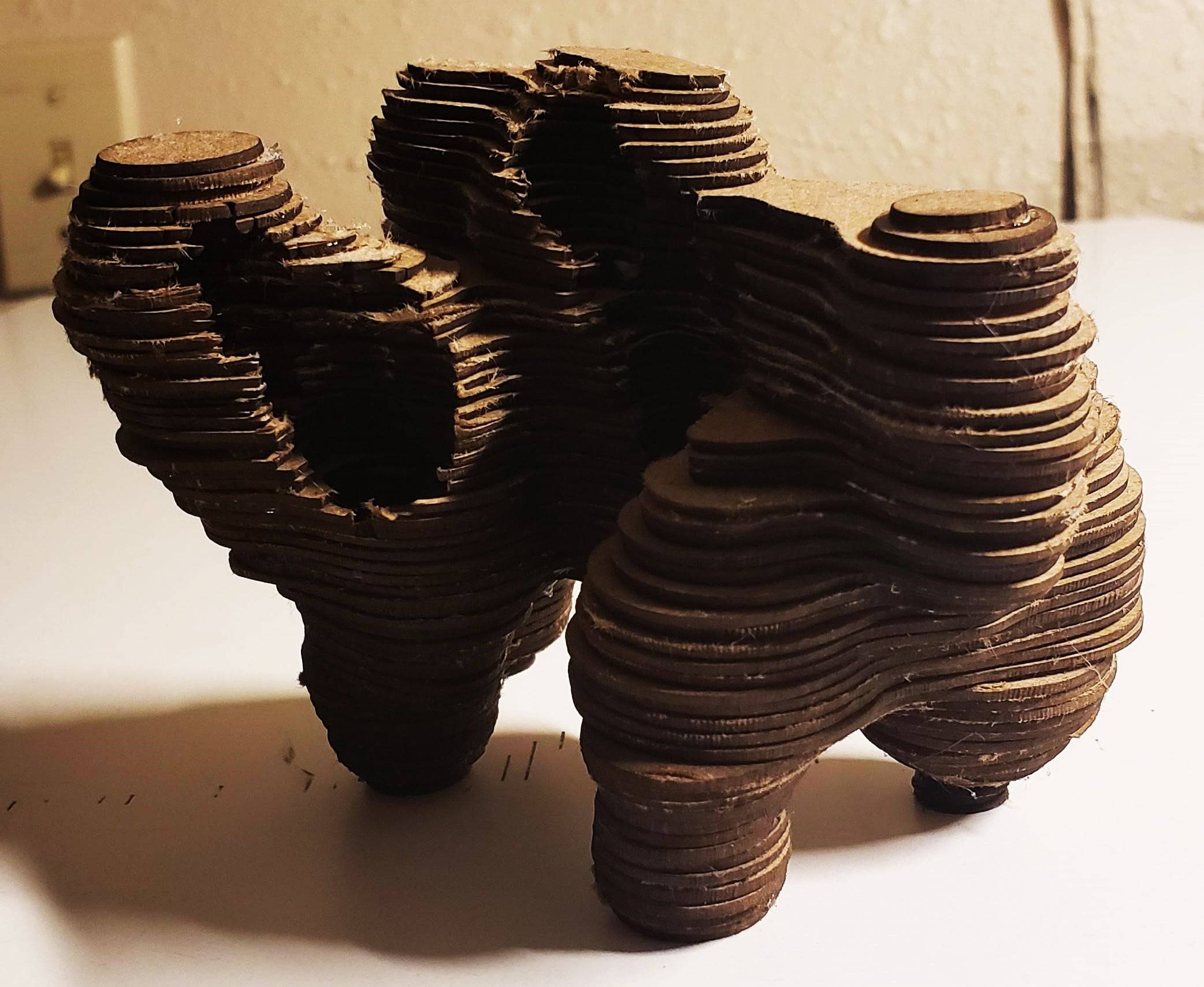

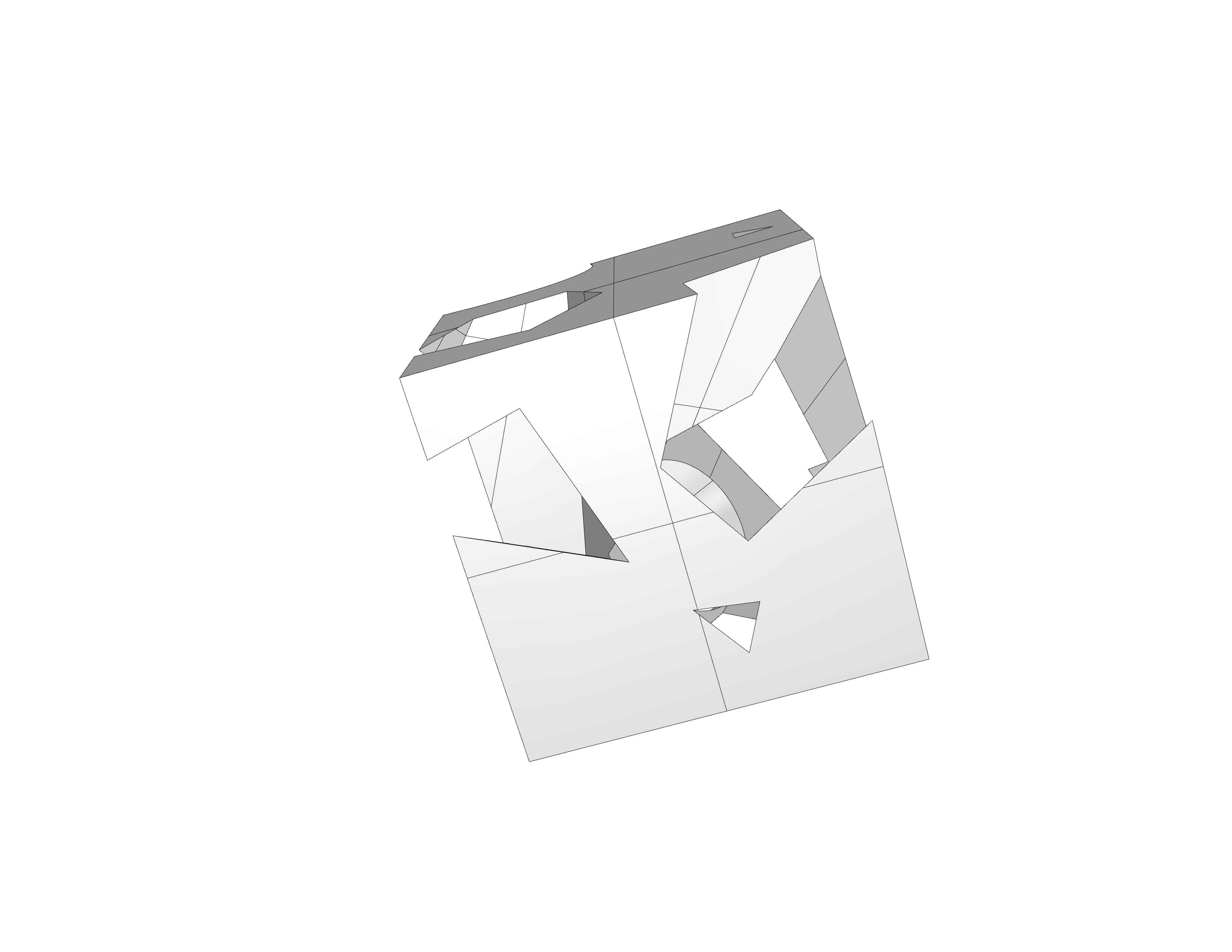

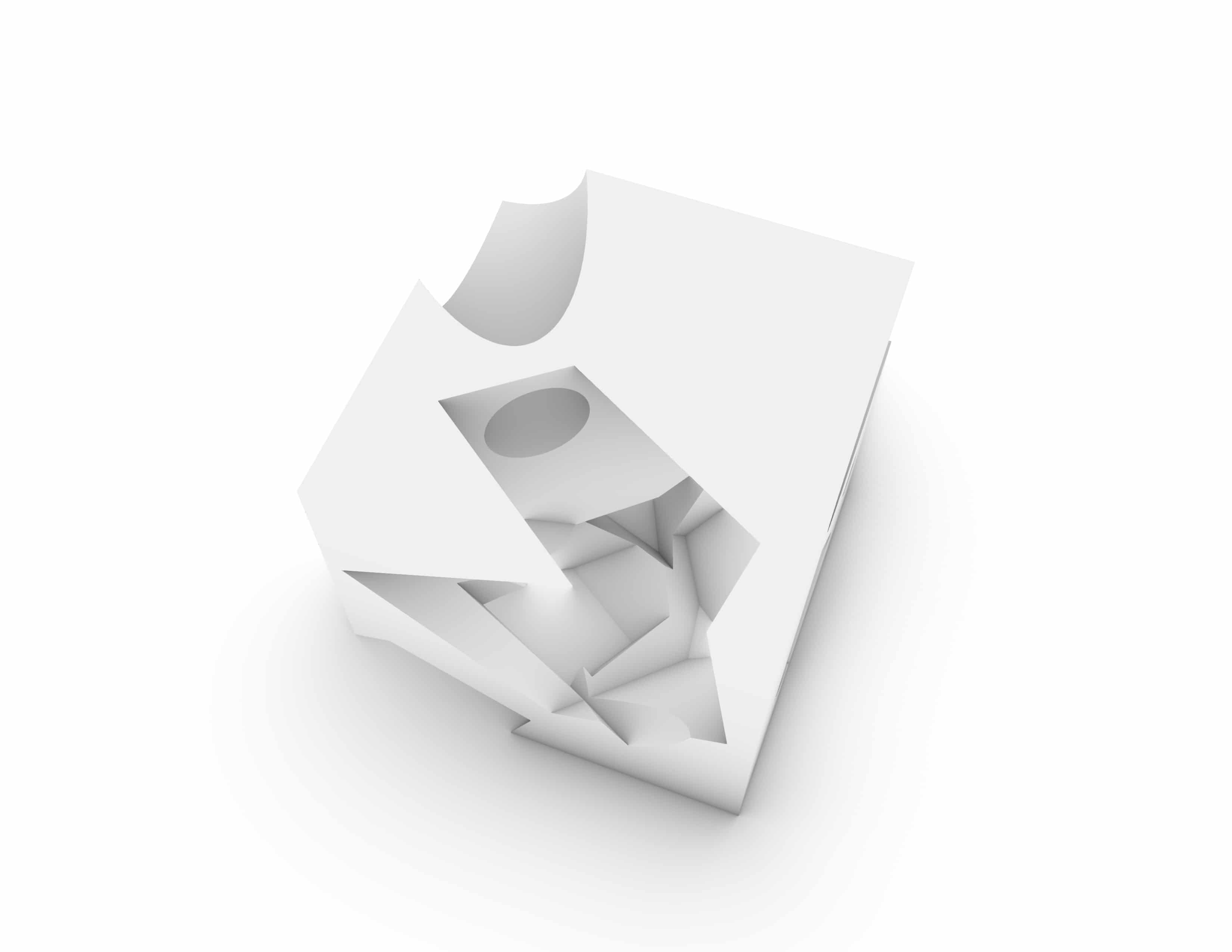

Each team developed parametric models that balanced computational precision with physical experimentation. Through iterative prototyping, students studied how form, material layering, and digital tooling could simulate topographic and architectural conditions. CNC milling was used to generate stacked terrains from sheets of honeycomb cardboard, translating algorithmic data into a tactile, layered landscape. The workflow emphasized problem-solving, tool literacy, and the translation of digital logic into large-scale fabrication. By linking design computation to material outcomes, the seminar demonstrated how digital fabrication can serve as both an analytical and generative act of design research.

Topographical Ecotones: Exhibition and Virtual Experience

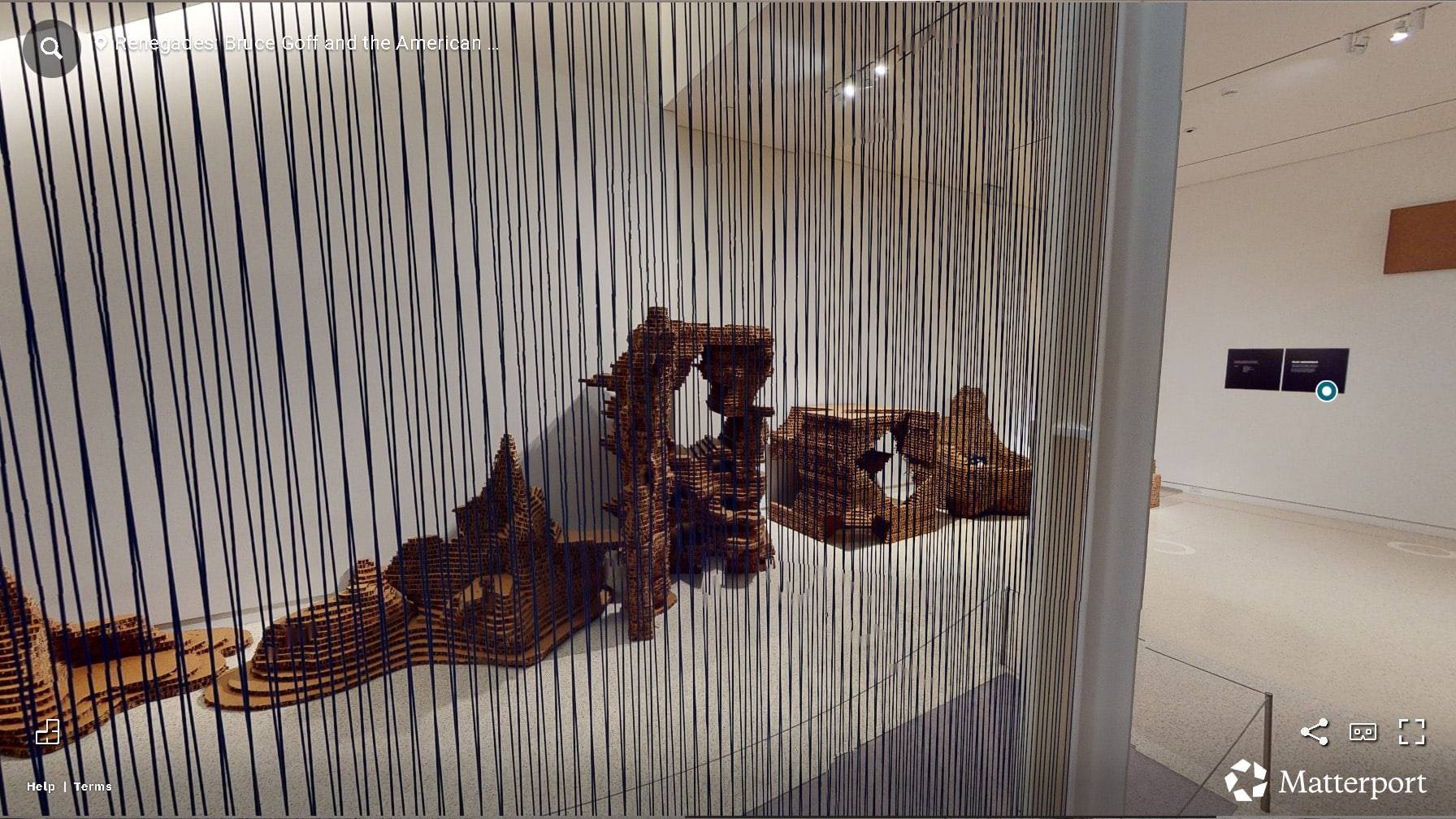

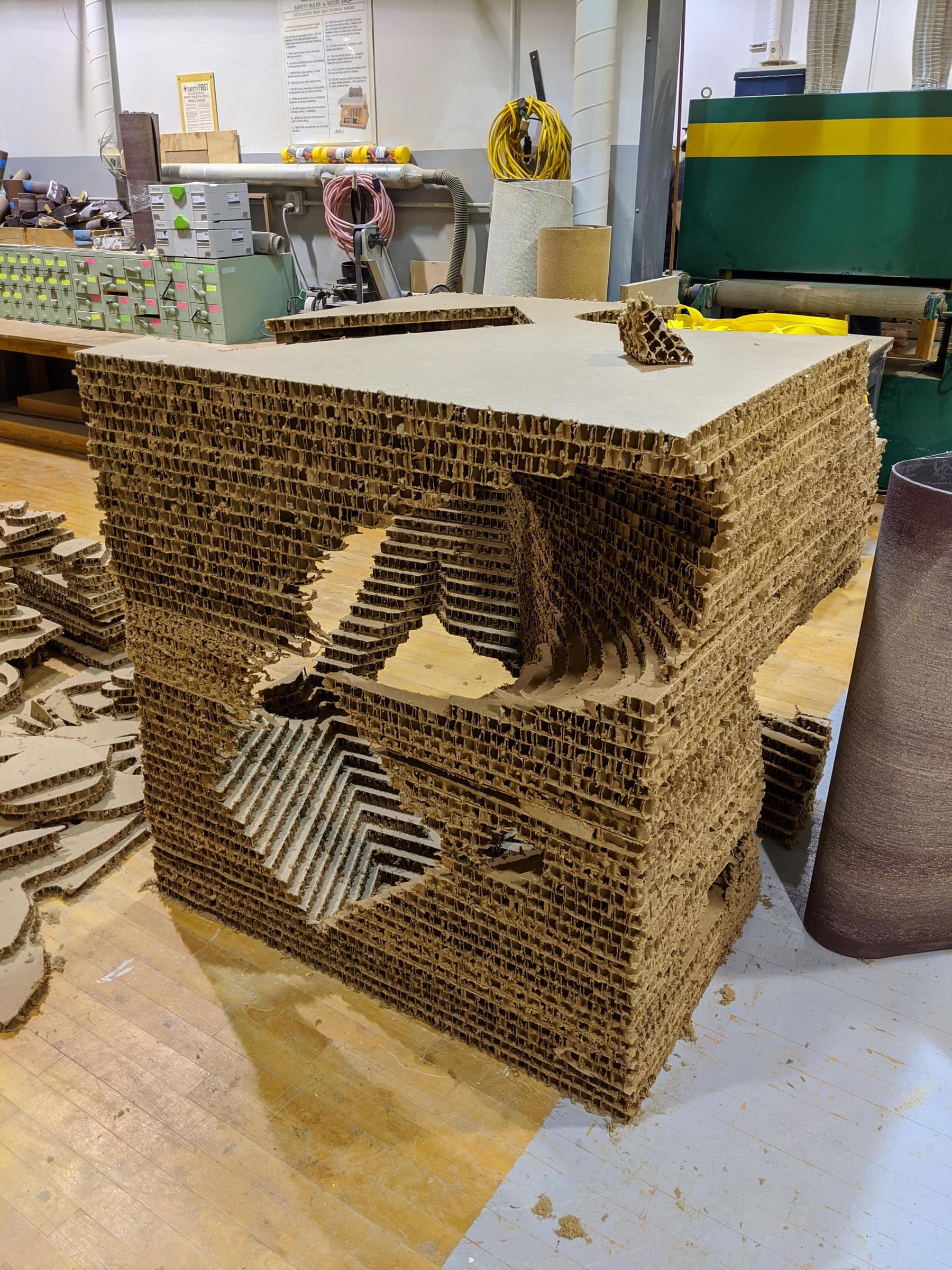

The resulting student work was realized as a full-scale installation within the Renegades: Bruce Goff and the American School of Architecture exhibition at the Fred Jones Jr. Museum of Art. Fabricated from hundreds of CNC-cut honeycomb cardboard profiles, the installation occupied the museum’s Family Experience Gallery as a continuous, inhabitable terrain. Visitors were encouraged to explore the work physically—walking around, climbing over, and even modifying the topographies with blocks and materials provided as part of the interactive Play Architect! activity. This participatory framework extended the ethos of the American School, positioning making as a shared, exploratory process.

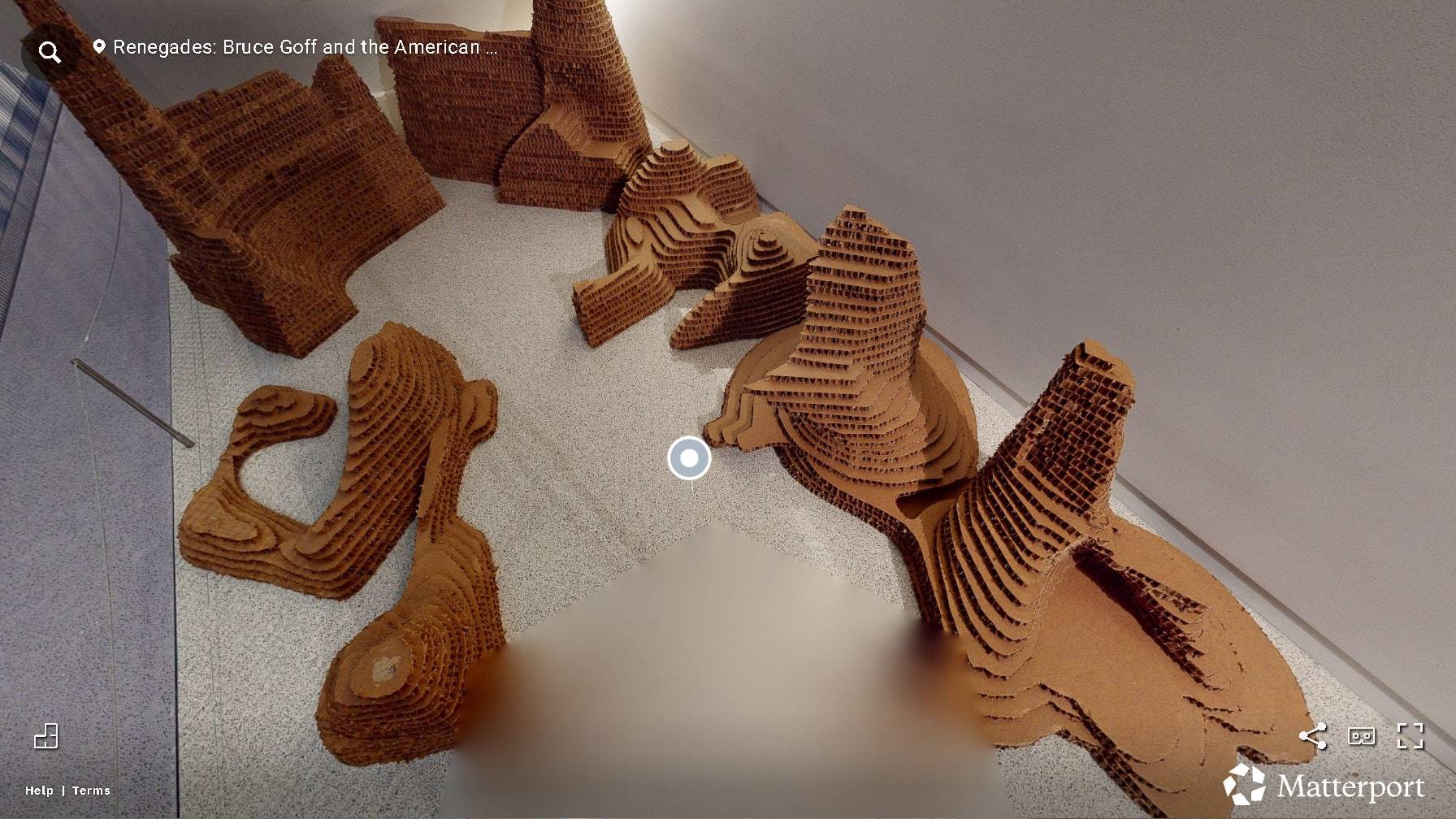

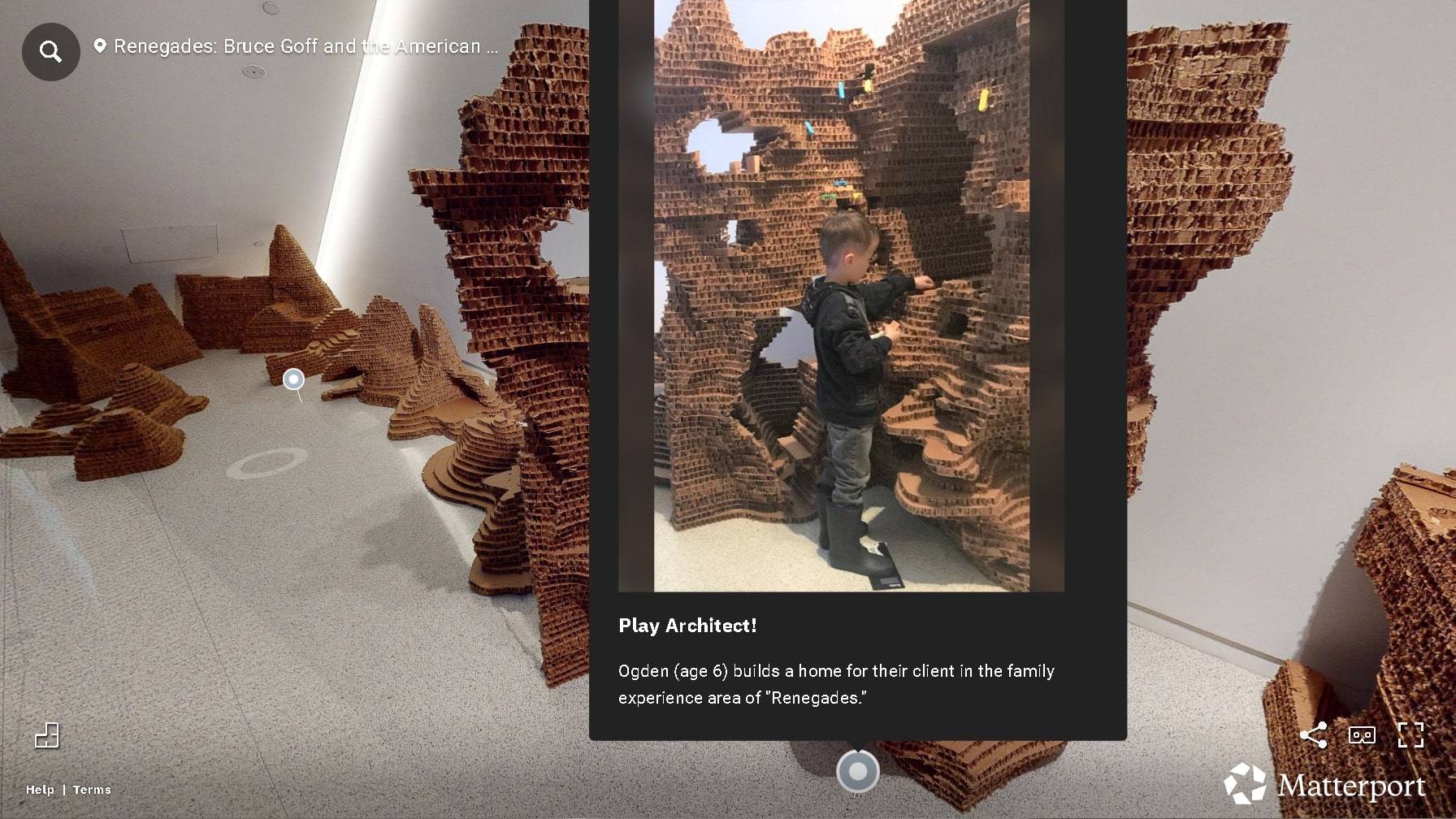

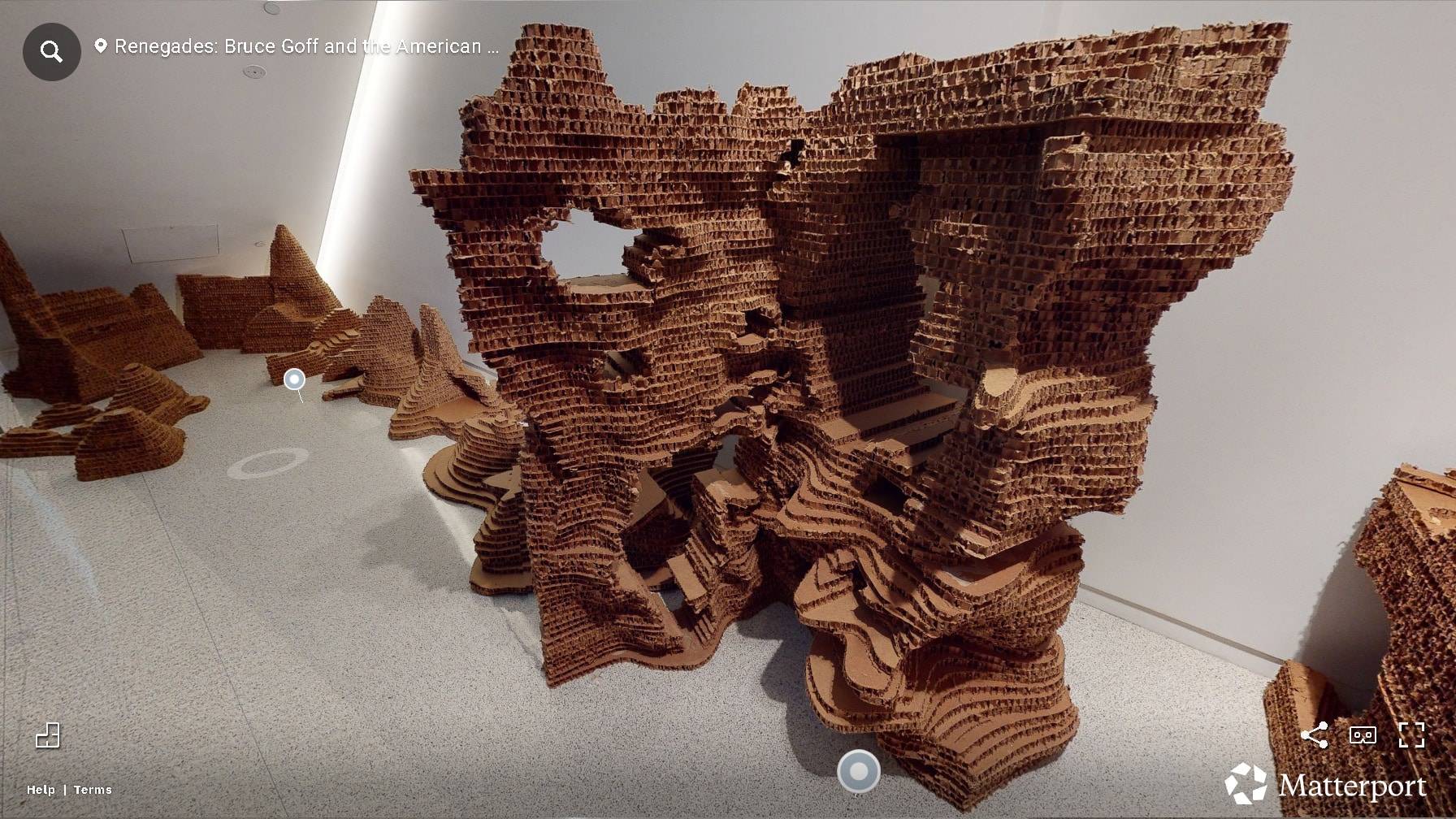

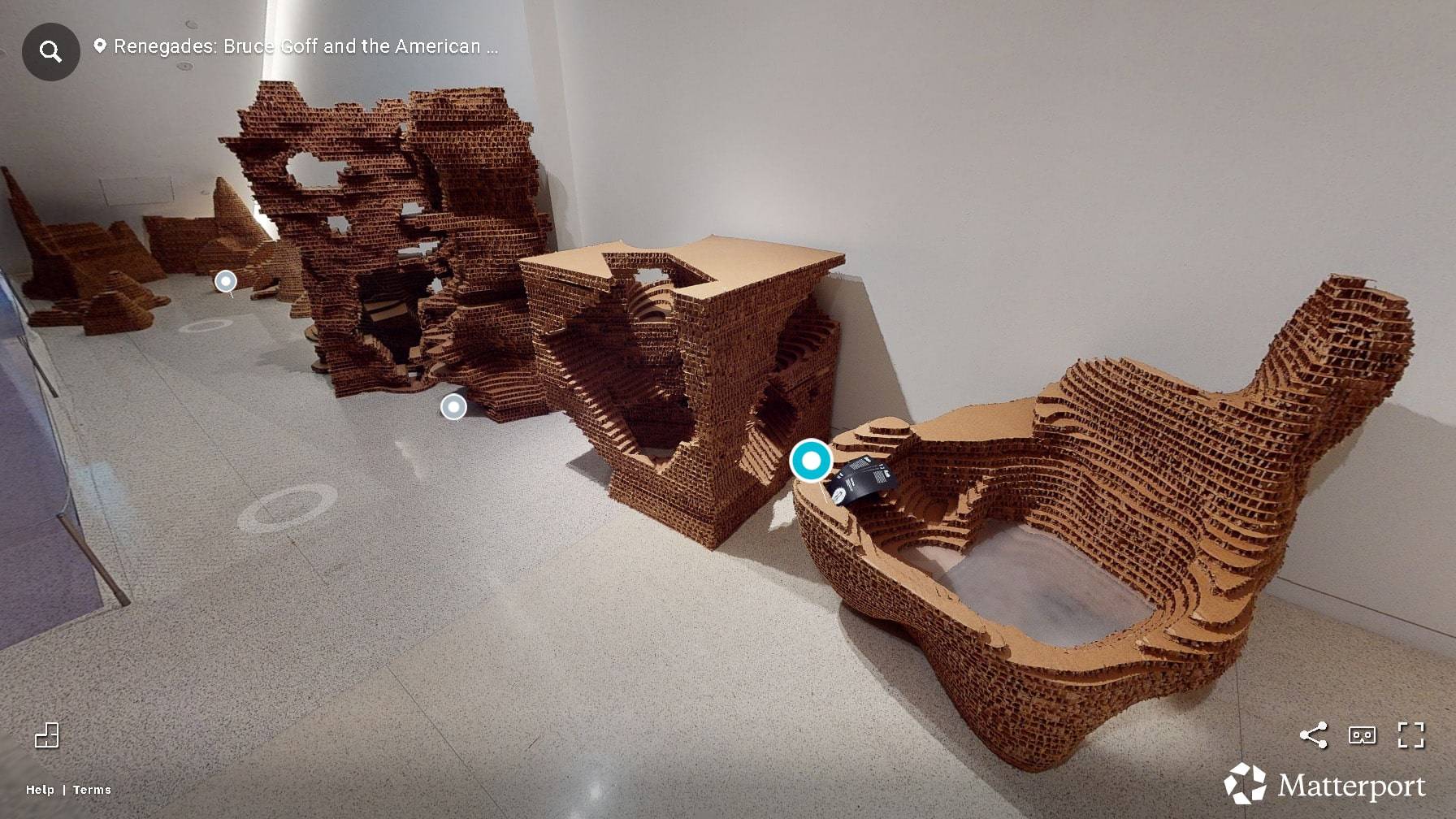

The installation was also documented through a virtual Matterport experience, which allowed audiences to navigate the environment online. This digital extension expanded the project’s accessibility, enabling broader engagement beyond the museum walls. The combination of physical immersion and virtual interactivity reinforced the central themes of the project—collaboration, adaptability, and invention through material engagement. As both exhibition and educational experiment, Topographical Ecotones transformed the museum into a site of collective discovery, bridging research, pedagogy, and public participation through design.

Interpretation and Impact

The Renegades exhibition and its associated research exemplify a synthesis of fabrication, pedagogy, and material innovation. The honeycomb cardboard installations revealed how material limitations can generate new forms of architectural expression, while the Edge Insert research advanced this work into technical and patentable innovation. The accompanying seminar and exhibition installation translated those ideas into a participatory format, transforming the exhibition into a living educational platform.

Together, these efforts expanded the scope of what an architectural exhibition can be: not only a display of history and objects, but a space for invention, learning, and public engagement. Renegades stands as both a tribute to Bruce Goff’s legacy and a continuation of his experimental spirit, demonstrating that the act of fabrication remains one of architecture’s most profound modes of research.
